High-performance glass options for Saudi villas and façades
By Alfa Arabia ·
High thermal performance involves both limiting heat transfer and managing solar heat gain. For a Saudi villa or glazed façade, compare insulated glazing, Low-E coatings and solar-control options with the frame, shading and installation details. A product name or darker glass colour is not enough to establish performance.
خيارات الزجاج عالي الأداء الحراري
Glass options to compare
These options can be combined; they are not mutually exclusive product categories. Confirm the exact build-up and availability for your project.
| Option | Purpose and checks |
|---|---|

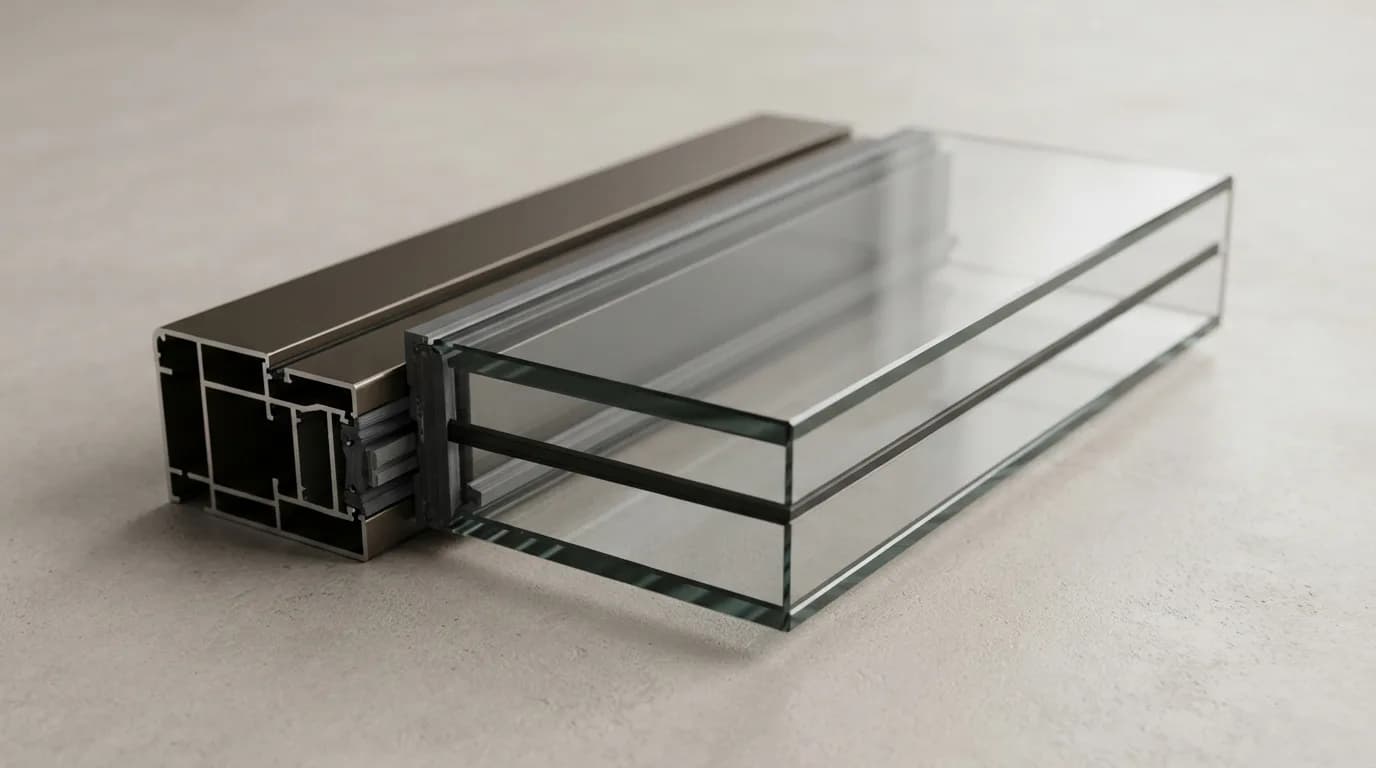

| Insulated glass units (double glazing) | Two panes separated by a sealed cavity. Review the cavity, spacer, edge seal and declared thermal performance. |
| Low-E coated glass | A low-emissivity coating limits radiative heat transfer. Check its solar-control characteristics as well as its insulation performance. |
| Solar-control / spectrally selective glazing | Controls incoming solar energy. Compare SHGC with visible transmittance, colour and reflectance. |
| Argon-filled insulated glazing | An optional cavity specification that can improve insulation. Assess it as part of the complete sealed unit. |
| Triple glazing | Adds a pane and cavity. Review the performance benefit against weight, system compatibility and cost. |
Technical background: U.S. Department of Energy: window technologies and energy-efficient glazing features.
Read the performance values together
- U-value / U-factor: lower values indicate less non-solar heat transfer. Compare values in the same units and confirm whether they refer to the glass alone or the whole window.
- SHGC: a lower solar heat gain coefficient means less solar heat enters. Select the target for the elevation and cooling requirements, alongside shading and daylight.
- Visible transmittance (VT): indicates how much visible light passes through. Balance daylight with glare, solar control and the intended appearance.
The NFRC rating programme evaluates these measures. Referencing the programme does not imply that a proposed Alfa Arabia assembly is NFRC-certified; request the documentation for the actual product.
Specify the glass with the aluminium system
For large villa doors, curtain walls and skylights, review the selected glass weight and thickness with the frame and hardware. Thermal-break profiles, perimeter seals and installation interfaces also matter. Tempering and lamination address separate design requirements; neither label on its own establishes thermal performance.
Ask for the manufacturer’s glass build-up, coating reference, declared U-value, SHGC and VT, and the basis of those values. Include the opening dimensions, orientation, shading and designer’s requirements in the enquiry. Final selection should be reviewed for the project rather than based on a generic energy-saving percentage.
خيارات زجاج عالي الأداء الحراري للفلل والواجهات في السعودية
عند اختيار الزجاج للفلل الفاخرة أو واجهات المشاريع في الرياض والسعودية، تُراجع خيارات الزجاج العازل المزدوج وطلاءات Low-E والتحكم الشمسي مع نظام الألمنيوم وطريقة التركيب. ويمكن دمج هذه الخصائص في وحدة واحدة وفق متطلبات المشروع، بدلاً من اعتبار كل اسم منتجاً منفصلاً.
قارن معامل انتقال الحرارة U-value ومعامل الكسب الحراري الشمسي SHGC ونفاذية الضوء المرئي VT. اطلب توضيح ما إذا كانت البيانات تخص الزجاج فقط أو النافذة كاملة، مع استخدام وحدات قياس وأسس تقييم متطابقة. لا يكفي لون الزجاج أو كونه مقسّى أو مصفحاً لإثبات كفاءة العزل الحراري.
أرسل المخططات وأبعاد الفتحات واتجاه الواجهة ومتطلبات الخصوصية والمظهر والأداء إلى مصنع الفاء للألمنيوم. يمكن مراجعة خيارات الزجاج مع بروفايلات الألمنيوم ذات الفاصل الحراري ونطاق التركيب، ثم تحديد المواصفات المناسبة وتوافرها للمشروع.
Plan your project with Alfa Arabia
Discuss glazing requirements for luxury villas, curtain walls and skylights. Read our thermal-break aluminium guide to consider the frame alongside the glass.
